GitOps at Scale: Kubernetes & ArgoCD for Microservices

Answer-first: Why kubectl apply is dangerous. Learn how to automate a 21-service Go platform using ArgoCD App-of-Apps, Kustomize, and git revert rollbacks.

Building 21 well-architected Go microservices is only half the battle. If your deployment process relies on an engineer running kubectl apply from their laptop on a Friday afternoon, you haven’t built an enterprise platform — you’ve built a ticking time bomb.

When designing this composable e-commerce ecosystem, we made one hard architectural rule from day one: no human touches the production cluster directly. Everything flows through Git. ArgoCD enforces it.

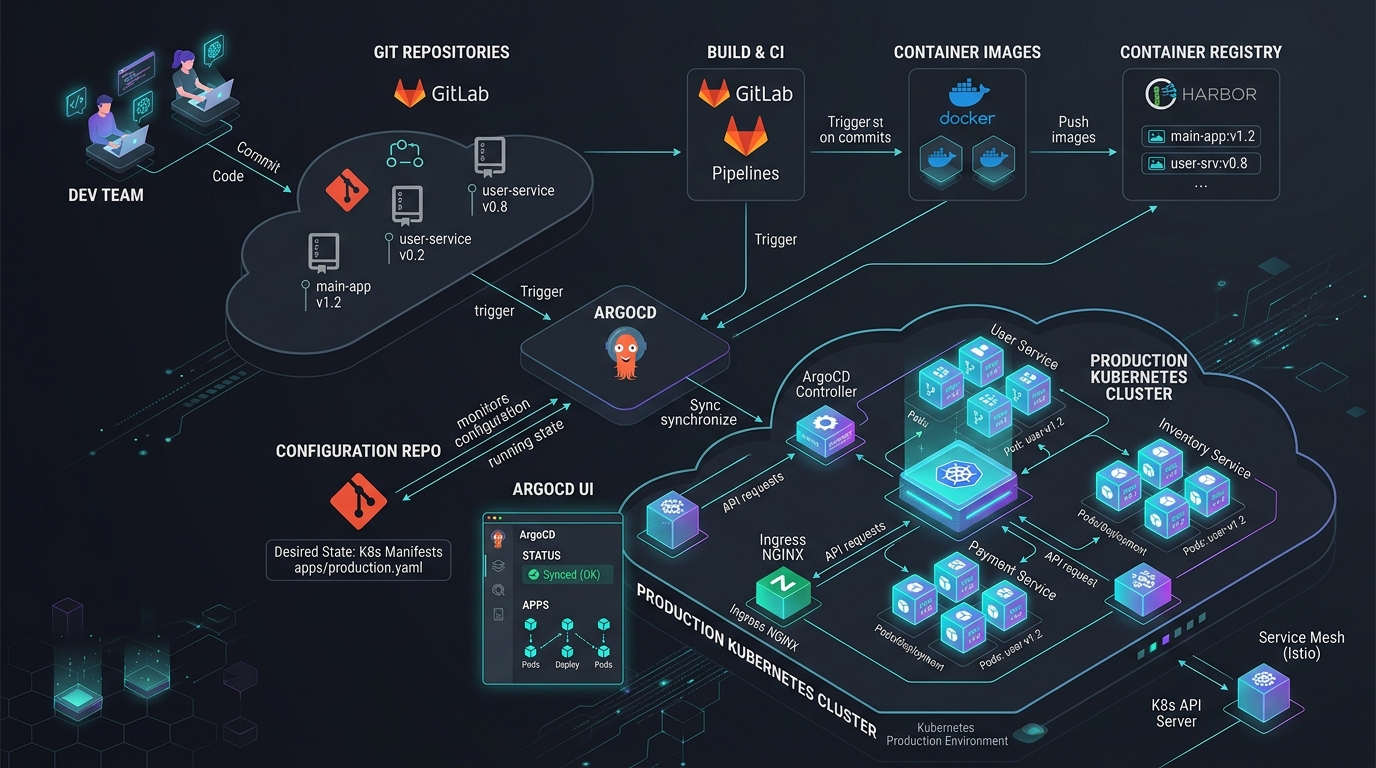

The GitOps Mental Model: Git is the Source of Truth

The core principle: a Git repository is the declarative desired state of your entire infrastructure. ArgoCD is the enforcement agent that continuously reconciles cluster state to match that Git state.

This is fundamentally different from a traditional CI/CD push model:

graph LR
    subgraph "CI Pipeline — Code"
        DEV["Developer"] -- "git push" --> APP["App Repository"]
        APP -- "GitHub Actions" --> DOCKER[("Container Registry")]
    end

    subgraph "CD Pipeline — GitOps"
        DOCKER -- "Updates image tag in" --> MAN["Manifest Repository"]
        ARGO["ArgoCD Controller"] -- "Polls every 3 min" --> MAN
    end

    subgraph "Kubernetes Cluster"
        ARGO -- "Applies diff, rolling restart" --> K8S["K8s Nodes"]
    end

1. CI: Engineer pushes Go code → GitHub Actions tests, builds the binary, pushes a Docker image to the registry, then opens a PR on a separate Manifest Repository updating the image tag.
2. CD: ArgoCD watches the Manifest Repo. When the PR is merged, ArgoCD detects the drift between desired state (Git) and actual state (cluster), and self-corrects automatically.

No human touches kubectl. No one needs cluster credentials in CI. The cluster is pull-based, not push-based.

Repository Structure

We use two separate repositories — a pattern known as split-repo GitOps:

manifest-repo/
├── apps/
│   ├── order-service/
│   │   ├── base/
│   │   │   ├── deployment.yaml
│   │   │   ├── service.yaml
│   │   │   └── kustomization.yaml
│   │   └── overlays/
│   │       ├── dev/
│   │       │   └── kustomization.yaml
│   │       ├── staging/
│   │       │   └── kustomization.yaml
│   │       └── prod/
│   │           ├── kustomization.yaml
│   │           └── hpa.yaml
│   └── checkout-service/
│       └── ...
└── argocd/
    ├── root-app.yaml          ← App-of-Apps root
    ├── order-service-prod.yaml
    └── checkout-service-prod.yaml

Keeping manifests in a separate repo from application code provides a clean audit trail: every deploy is a Git commit with a timestamp, author, and image tag. Rolling back is a git revert.

The ArgoCD Application CRD

Every service gets an Application CRD that tells ArgoCD exactly which path in the manifest repo to watch, and where to deploy it:

# argocd/order-service-prod.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: order-service-production
  namespace: argocd
  labels:
    environment: production
    team: commerce
spec:
  project: ecommerce-prod

  source:
    repoURL: https://github.com/your-org/manifest-repo.git
    targetRevision: main
    path: apps/order-service/overlays/prod  # points at prod Kustomize overlay

  destination:
    server: https://kubernetes.default.svc
    namespace: production

  syncPolicy:
    automated:
      prune: true      # remove resources deleted from Git
      selfHeal: true   # revert manual kubectl changes automatically
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true  # avoids annotation length limits on large CRDs
    retry:
      limit: 3
      backoff:
        duration: 30s
        factor: 2
        maxDuration: 5m

  # Health check: ArgoCD won't mark as Healthy until all pods are Running
  ignoreDifferences:
    - group: apps
      kind: Deployment
      jsonPointers:
        - /spec/replicas  # ignore HPA-managed replica count drift

selfHeal: true is the critical production setting. If an SRE manually patches a Deployment in production (for whatever reason), ArgoCD will revert it within 3 minutes. Git is the only source of truth — no exceptions.

Taming YAML Chaos with Kustomize

Managing manifests for 21 services across 3 environments (dev, staging, prod) produces 60+ YAML files. Copy-pasting creates configuration drift. Kustomize solves this with a base + overlay model.

Base Manifest (Environment-Agnostic)

# apps/order-service/base/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: order-service
spec:
  replicas: 1  # overridden per environment
  selector:
    matchLabels:
      app: order-service
  template:
    metadata:
      labels:
        app: order-service
    spec:
      containers:
        - name: order-service
          image: registry.example.com/order-service:latest  # tag overridden per environment
          ports:
            - containerPort: 8080
          resources:
            requests:
              cpu: "100m"
              memory: "128Mi"
            limits:
              cpu: "500m"
              memory: "512Mi"
          readinessProbe:
            httpGet:
              path: /health/ready
              port: 8080
            initialDelaySeconds: 10
            periodSeconds: 5
          livenessProbe:
            httpGet:
              path: /health/live
              port: 8080
            initialDelaySeconds: 30
            periodSeconds: 15

# apps/order-service/base/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - deployment.yaml
  - service.yaml

Production Overlay (Patches Only What Differs)

The overlay never duplicates the base — it only patches what changes per environment:

# apps/order-service/overlays/prod/kustomization.yaml
apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization

resources:
  - ../../base
  - hpa.yaml          # HPA only in prod

# Override the image tag for this specific release
images:
  - name: registry.example.com/order-service
    newTag: "v1.47.2"  # updated by CI pipeline after each build

# Strategic merge patch — only the fields that differ from base
patchesStrategicMerge:
  - |-
    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: order-service
    spec:
      replicas: 4      # prod gets 4 replicas vs dev's 1
      template:
        spec:
          containers:
            - name: order-service
              resources:
                requests:
                  cpu: "500m"
                  memory: "512Mi"
                limits:
                  cpu: "2000m"
                  memory: "2Gi"
              env:
                - name: DB_HOST
                  valueFrom:
                    secretKeyRef:
                      name: order-service-prod-secrets
                      key: db_host

# apps/order-service/overlays/prod/hpa.yaml
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: order-service-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: order-service
  minReplicas: 4
  maxReplicas: 20
  metrics:
    - type: Resource
      resource:
        name: cpu
        target:
          type: Utilization
          averageUtilization: 70

The dev overlay uses newTag: "latest", replicas: 1, lower resource limits, and no HPA. The staging overlay mirrors prod sizing but points to a staging database secret. All three share the identical base deployment logic.

The App-of-Apps Root

For 21 services, creating ArgoCD Application objects one-by-one is impractical. We use the App-of-Apps pattern: a single root Application that manages all other Application objects:

# argocd/root-app.yaml
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: ecommerce-platform
  namespace: argocd
spec:
  project: default
  source:
    repoURL: https://github.com/your-org/manifest-repo.git
    targetRevision: main
    path: argocd/  # ArgoCD watches this directory for Application CRDs
  destination:
    server: https://kubernetes.default.svc
    namespace: argocd
  syncPolicy:
    automated:
      prune: true
      selfHeal: true

When a new microservice is added to the platform, the process is:

1. Add a new Application YAML to argocd/
2. Merge the PR
3. The root App-of-Apps detects the new file and creates the child Application automatically
4. ArgoCD provisions the new service with zero manual intervention

The Rollback Story: git revert is Enough

Before GitOps, rolling back a broken deployment meant frantically digging through CI logs to find an old Docker tag, then running manual kubectl rollout undo commands while customers hit 500 errors.

With ArgoCD, disaster recovery is a four-step process:

# 1. Identify the bad commit
git log --oneline manifests/apps/checkout-service/overlays/prod/kustomization.yaml

# 2. Revert it
git revert <bad-commit-hash> --no-edit

# 3. Push
git push origin main

# 4. ArgoCD detects the revert within 3 minutes and rolls back automatically
# No kubectl required. No cluster access required.

The revert creates a new commit with full auditability: who reverted, when, and which change was undone. The cluster state is back to the last stable image in under 5 minutes.

For critical services (Checkout, Payment), we additionally use Argo Rollouts with Prometheus-based health gates — if error rate or p99 latency exceeds thresholds during a rollout, the canary is automatically aborted and traffic is shifted back to the stable version without human intervention.

Summary: The Principles That Make This Work

The investment pays off the first time you hit a bad production deploy at 2am. Instead of a frantic kubectl session, you open a terminal, type three git commands, and watch ArgoCD fix the cluster by itself.
